Connector Sealing Gasket
EG-003 · connector-sealing-gasket

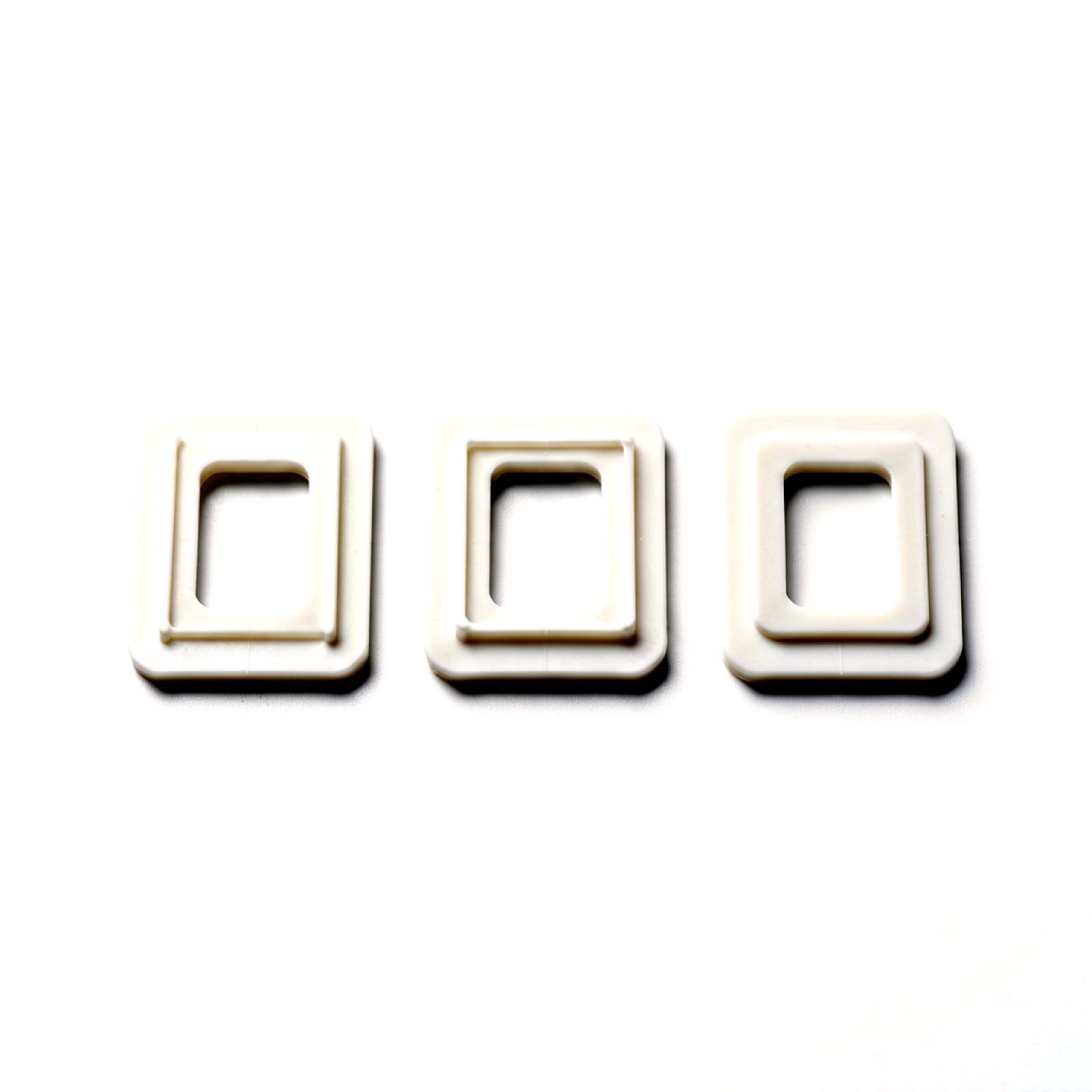

Connector Sealing Gasket

IP68 face seal for circular connectors

The Connector Sealing Gasket is a IP68 face seal for circular connectors. We mold it by LSR injection in a Shore A 50–70 compound, holding ±0.05 mm across production lots, and it complies with UL 94 V-0 · RoHS · REACH · IP68. Typical minimum order is 2,000 pcs; series lead time is 18 days.

A precision face gasket for circular connectors, molded with a moulded-in rib that takes up housing tolerance without over-compressing. Tested to IP68 immersion.

  • IP68 immersion tested
  • ±0.05 mm on the sealing rib
  • UL 94 V-0 compound
Request a quote

Specification

Hardness Shore A 50–70
Service temperature -60–250 °C
Achievable tolerance ±0.05 mm
Molding process LSR injection
Typical MOQ 2,000 pcs
Lead time 18 days

Compliance

  • UL 94 V-0
  • RoHS
  • REACH
  • IP68

Frequently asked about this part

What is the minimum order quantity for the Connector Sealing Gasket?

Typically 2,000 pcs. Below that we can still quote, but tooling amortisation starts to dominate the unit price. Sampling and tooling are quoted separately from series production.

What is the lead time for the Connector Sealing Gasket?

Series production runs 18 days after sample approval. Tool design and T1 sampling add 10–14 days up front, and DFM feedback on your drawing comes back within 48 hours.

What tolerance can you hold on the Connector Sealing Gasket?

±0.05 mm is the achievable production tolerance for this part family. It covers the dimensions that matter for fit and sealing; we confirm which ones are critical in the DFM memo before tooling is cut.

Which standards does the Connector Sealing Gasket comply with?

It is produced to UL 94 V-0 · RoHS · REACH · IP68. Certificates and test reports are on file and can be forwarded once an NDA is in place.

How is the Connector Sealing Gasket molded?

By LSR injection, in a cell dedicated to that silicone grade. Medical parts are never run on a line that has produced kitchenware — each grade keeps its own press, tooling and QC station.

What hardness and temperature range does the Connector Sealing Gasket use?

Shore A 50–70, with a service range of -60–250 °C. If your application needs a different durometer in the same geometry, we can usually re-quote the compound without cutting new tooling.

Other products in this category

Silicone Keyboard Membrane Silicone Keyboard Membrane 10M-cycle key domes EV Battery Insulation Pad EV Battery Insulation Pad CTI 600 V, flame retardant Silicone Optical Lens Silicone Optical Lens UV-stable, ±0.03 mm surface Thermal Conductive Pad Thermal Conductive Pad 3.0 W/m·K, soft interface

Need this part quoted?

Send the drawing or a sample. DFM feedback and a quotation within two business days.
