Thermal Conductive Pad
EG-003 · thermal-conductive-pad

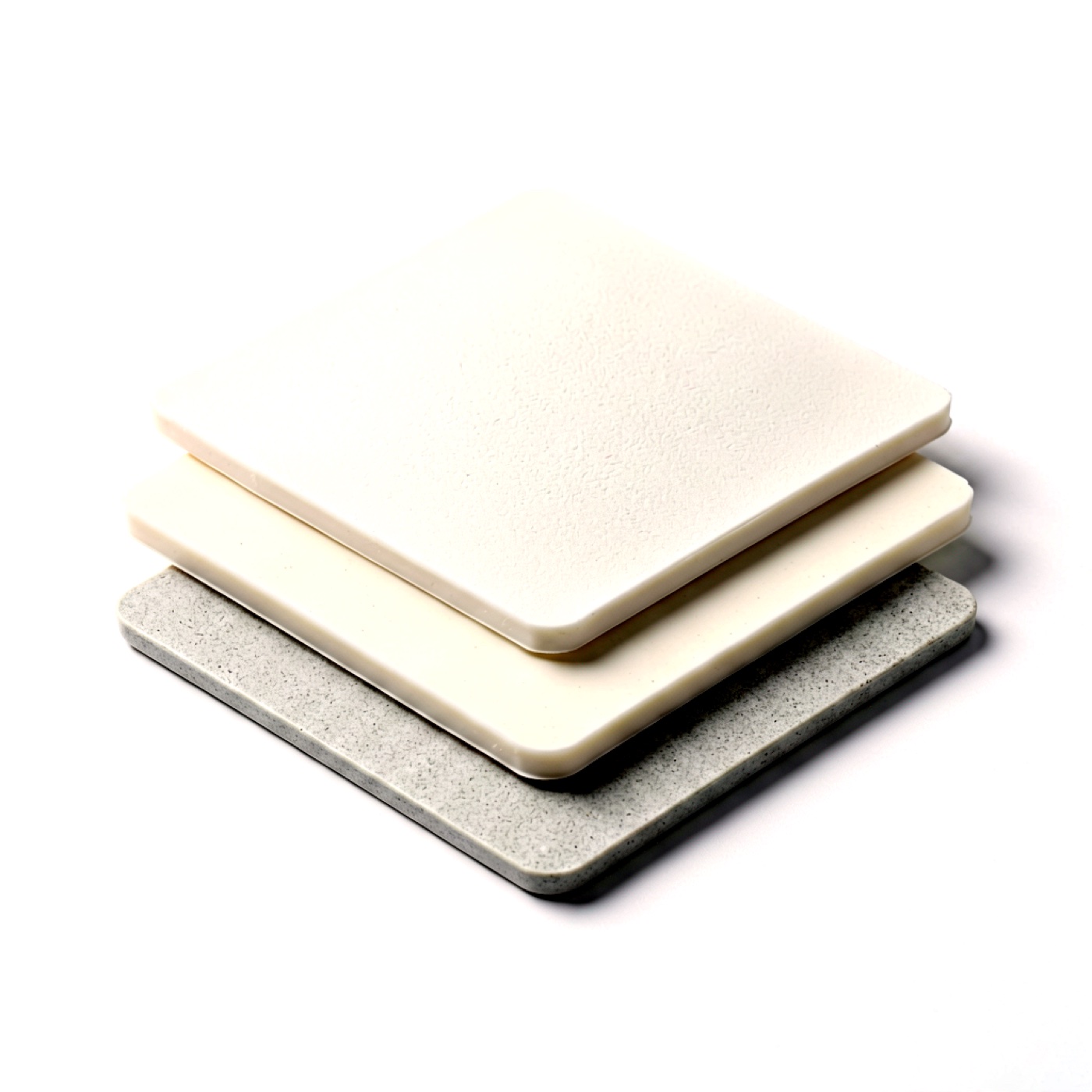

Thermal Conductive Pad

3.0 W/m·K, soft interface

The Thermal Conductive Pad is a 3.0 W/m·K, soft interface. We mold it by HCR compression in a Shore A 20–50 compound, holding ±0.10 mm across production lots, and it complies with UL 94 V-0 · RoHS · REACH · 3.0 W/m·K. Typical minimum order is 1,000 pcs; series lead time is 16 days.

A ceramic-filled silicone gap pad that conforms to uneven surfaces at low pressure, giving a stable thermal path without stressing the component it touches.

  • 3.0 W/m·K conductivity
  • Conforms at low pressure
  • Multiple thicknesses from stock tooling
Request a quote

Specification

Hardness Shore A 20–50
Service temperature -60–200 °C
Achievable tolerance ±0.10 mm
Molding process HCR compression
Typical MOQ 1,000 pcs
Lead time 16 days

Compliance

  • UL 94 V-0
  • RoHS
  • REACH
  • 3.0 W/m·K

Frequently asked about this part

What is the minimum order quantity for the Thermal Conductive Pad?

Typically 1,000 pcs. Below that we can still quote, but tooling amortisation starts to dominate the unit price. Sampling and tooling are quoted separately from series production.

What is the lead time for the Thermal Conductive Pad?

Series production runs 16 days after sample approval. Tool design and T1 sampling add 10–14 days up front, and DFM feedback on your drawing comes back within 48 hours.

What tolerance can you hold on the Thermal Conductive Pad?

±0.10 mm is the achievable production tolerance for this part family. It covers the dimensions that matter for fit and sealing; we confirm which ones are critical in the DFM memo before tooling is cut.

Which standards does the Thermal Conductive Pad comply with?

It is produced to UL 94 V-0 · RoHS · REACH · 3.0 W/m·K. Certificates and test reports are on file and can be forwarded once an NDA is in place.

How is the Thermal Conductive Pad molded?

By HCR compression, in a cell dedicated to that silicone grade. Medical parts are never run on a line that has produced kitchenware — each grade keeps its own press, tooling and QC station.

What hardness and temperature range does the Thermal Conductive Pad use?

Shore A 20–50, with a service range of -60–200 °C. If your application needs a different durometer in the same geometry, we can usually re-quote the compound without cutting new tooling.
